Electric Skateboard 15A 3 Phase BLDC Motor Driver Board

Name: Electric Skateboard 15A 3 Phase BLDC Motor Driver Board
Brand: JUYI
Price: 1 USD

Quality Electric Skateboard 15A 3 Phase BLDC Motor Driver Board wholesale

Brand Name : JUYI

Model Number : JYQD-YL02D

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T,L/C,Paypal

Supply Ability : 1000sets/day

Delivery Time : 5-10 days

Packaging Details : PE bag+ carton

Working voltage : 12-36VDC

Drive power : 500W/ motor

PWM speed control : Duty cycle 0-100%

Speed pulse signal output : YES

Color : Green

Operating temp. : -20 - 85℃

Contact Now

12-36VDC 15A 3 Phase BLDC Motor dual Driver/controller For Wheelchair / Electric Skateboard

Overview

Quick Details

Place of Origin:: Jiangsu, China

Brand Name:: JUYI

Model Number:: JYQD-YL02D(8559)

Working voltage:: 12-36VDC

Drive mode:: Dual motor drive

Max working current:: 15A/ motor

Single motor power:: 540W

Packaging & Delivery

Selling Units:: Single item

Single package size:: 10X8X4 cm

Single gross weight:: 0.060 kg

Lead Time:

Quantity(Pieces)	1 - 1000	>1000
Est. Time(days)	15	To be negotiated

Product Description

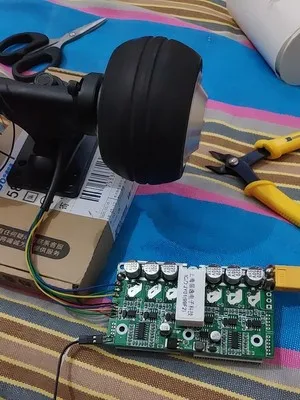

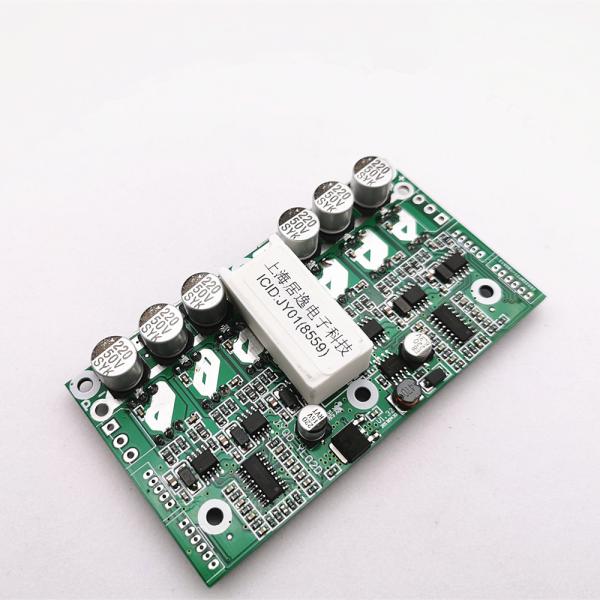

JYQD-YL02D is very compact size BLDC motor driver board with necessary standard functions,its favorable price and reliable performance are competitive for industrial and commercial applications.
Its widely applied by the worldwide clients almostly for 5 years,its mature and stable design are competent for many applications.

Electric Skateboard 15A 3 Phase BLDC Motor Driver Board

MODEL NO.	JYQD-YL02D(8559)
OPERATING TEMPERATURE	-20—85℃
OPERATING VOLTAGE	12V-36VDC
WORKING CURRENT	15A
PWM SPEED REGULATION	PWM Frequency :1K-10KHz, 0-100% dutycycle
ANALOG VOLTAGE SPEED REGULATION	0-5V

Application guidelines

This controller can drive two motors at same time,can be single or double controlled.
It has Reactive power brake function,Brake reverse charging protection release circuit,can be MCU controlled,

The "5V" port on the board can offer 300mA current to external MCU


JYQD-YL02D is driver board without housing and heatsink, it can drive the BLDC motor below 100W without any heatsink,but needs normal ventilation.

Different Hall effect sensored BLDC motor has different Hall wires sequence, please do well-match before onload drive.

Add heatsink if the power more than 100W and keep good heat dissipation conditions for the board.

Description of wiring

1. Control port

GND:Only for control signal VR:Speed regulation,(0-2.5V or 0-5V linear speed regulation).PWM frequency:1K-5KHz. ZF:Forward and backward control(5V high level or 0V low level,if you use 3.3V MCU,you need do adjustment to 5V) M:speed pulse signal output EL:brake function, 0-2.5V or 0-5V linear brake 5V:5V power source for external control device(≤300mA)

2. Power port
MA ----motor phase A
MB ---- motor phase B
MC---- motor phase C
P- ----DC-
P+----DC +
3: Hall sensor port
Ha--- Hall a
Hb--- Hall b
Hc--- Hall c
GND---GND
5V---5V input
4: Remarks
1. Use shielded wires if the drivers board has more than 50 cm distance from the motor, otherwise it may lead to abnormal driving, affecting the normal use.
2. Control port distance: 2.54mm,motor phase:3.96 mm
3. Pay attention to the insulation between the driver MOSFET and the heatsink or the installation plate.


Overall dimensions

Board size customizable to your requests.

Please contact us if you need technical support.
OEM,ODM service are available!
