Factory Electric Coolant Pump For Glycol Fluorinated Liquid Cooling System in ESS Cabinet, Data Center Cooling Sysytem and 5G Signal Base Station.
Product features

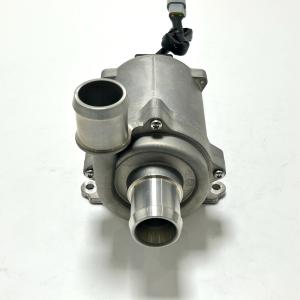

Product name:BLDC Electric Water Pump
Model:OWPD650L-1
Service life: 40000hrs
IP grade: IP67
Appearance: Aluminum alloy natural colors
Bracket: All-in-one
Noise: ≤65dB(A)
Weight: 2.53Kg
Tightness: At 0.4Mpa, the leakage＜1ml
Flame retardant: According to GB/T 2408 standard, it meets the horizontal combustion HB level and the vertical combustion V-0 level
Mechanical strength: According to QC/T413-2015 standard, Meets Severity Rating: On Engine
Prohibited substances: Meets GBT 30512-2014
The scope of use
Ambient temperature: -40—85℃
Liquid temperature: -40—85℃
Liquid type: Commercial coolants can be used with water pumps, but mixing different coolants is not allowed. The mixing ratio of water and antifreeze is selected in a range of 50/50 to 40/60.
In order for the cooling system to be completely filled with media, the cooling system must be completely drained to a vacuum.
Installation: Vibration and noise requirements must be taken into account in the definition of the installation location and specific fixing elements/fasteners in the application, and the installation position must avoid water accumulation on the surface/inside the connection system.
Typical applications: Energy storage thermal management system, liquid-cooled charging cabinet, data center system
Basic parameters:
Rated voltage: 48VDC
Operating voltage range:30-60VDC
Current rating: 15±5% A
Rated performance: 120L/min@180Kpa
Input power: 700W±5%
Maximum flow rate: 180±5% L/min
Maximum head: 23±1 m
Speed range: 2500rpm～5500rpm
Resistance: 2.6±3%Ω
Inductance: Axis-Q 14mH Axis-D 13mH
BEMF: 24.5±3%V
Number of pole pairs: 3 pairs of poles
Insulation rating: F
Electrical strength: ＜1mA ＞500MΩ
Harness length: U V W Power cord length 300mm
Plug-in information: Amphenol:AT04-3P-RD01-NFK
Instructions for the use of the controller
PCBA dimensions:100mm*90mm,Height:32mm
Controller Installation Dimensions:
Heatsink size:120mm*100mm,Heatsink thickness:8mm
Overall height (including PCBA):42mm,Mounting Sockets:4mm*5mm(Use M3 screws)
I/O control port
- PWM. PWM input frequency: 100-1000Hz (200Hz recommended), PWM amplitude: 10-48V, duty cycle speed regulation range description: 0%-10%: pump stop (7% is recommended to stop signal), 11%-55%: pump minimum speed operation; 56%-90%: linear speed range, 91%-100%: maximum speed operation of the pump
- Fault. Fault feedback signal output (current type): high level (48V) for normal operation, low level (<1V) for fault, and the typical operating current for fault feedback is 5mA
- GND. Signal GND
- VSP. Analog voltage input speed regulation(0-10V)
- 10V. 10V supply.
Pump installation size
The performance of the pump
Schematic diagram of test bench
